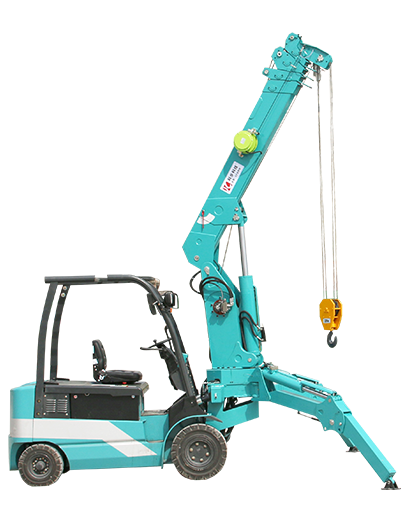

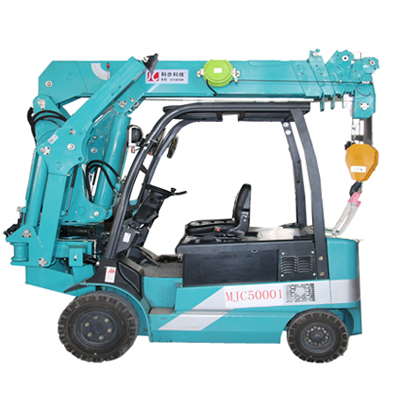

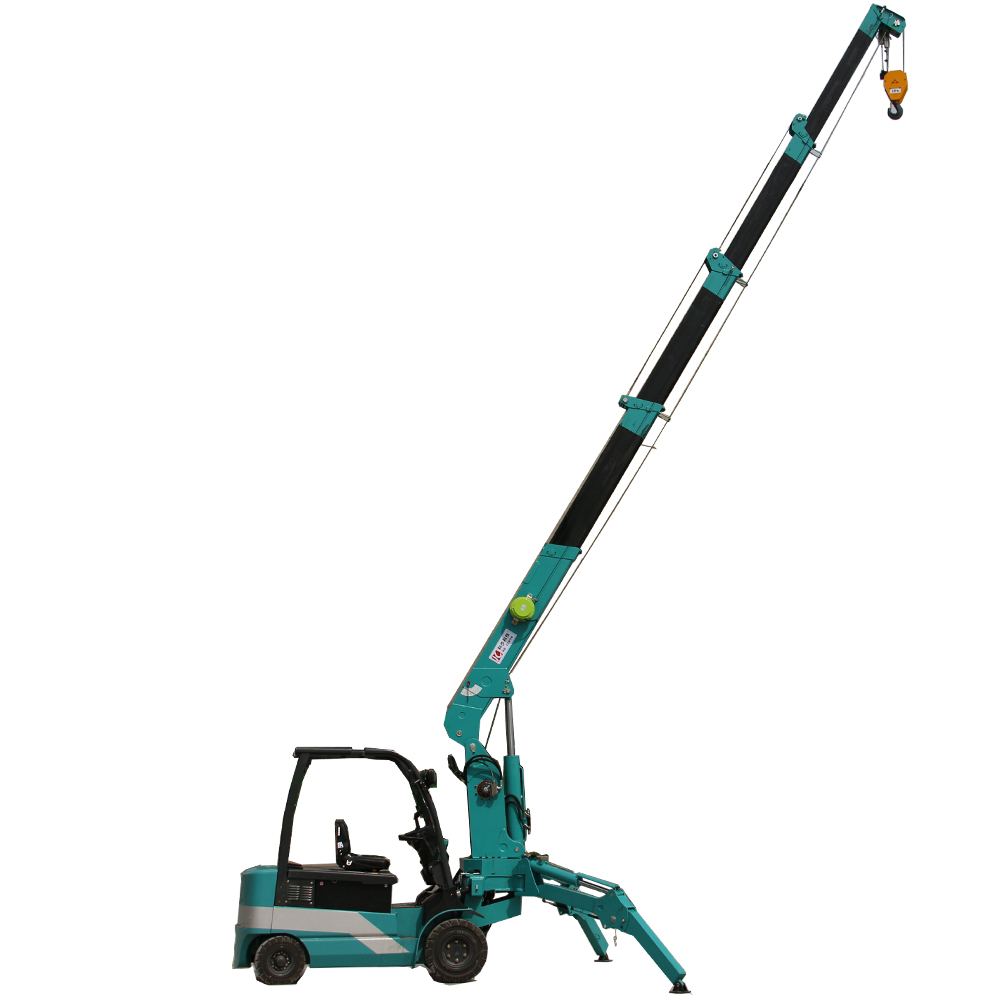

KBE3.0 all-electric wheeled crane

MODEL：KBE3.0

SIZE：2.95Tx1.3m

MAX WORKING RADIUS：8.3m

MAX OVERLAND LIFT：9.2m

WORKING ENVIRONMENT：Narrow space/interior

LEG FORM：

DRIVING MODE：

INTRODUCTION：

FEATURE：

KBE wheeled pure electric crane product features: 1. Compact structure, comfortable operation and high stability 2. No noise, no pollution, zero emission, clean and environmental protection 3. Wheeled structure, fast movement, high efficiency

Offer consulting

kebucrane@163.com

PRODUCT INTRODUCTION

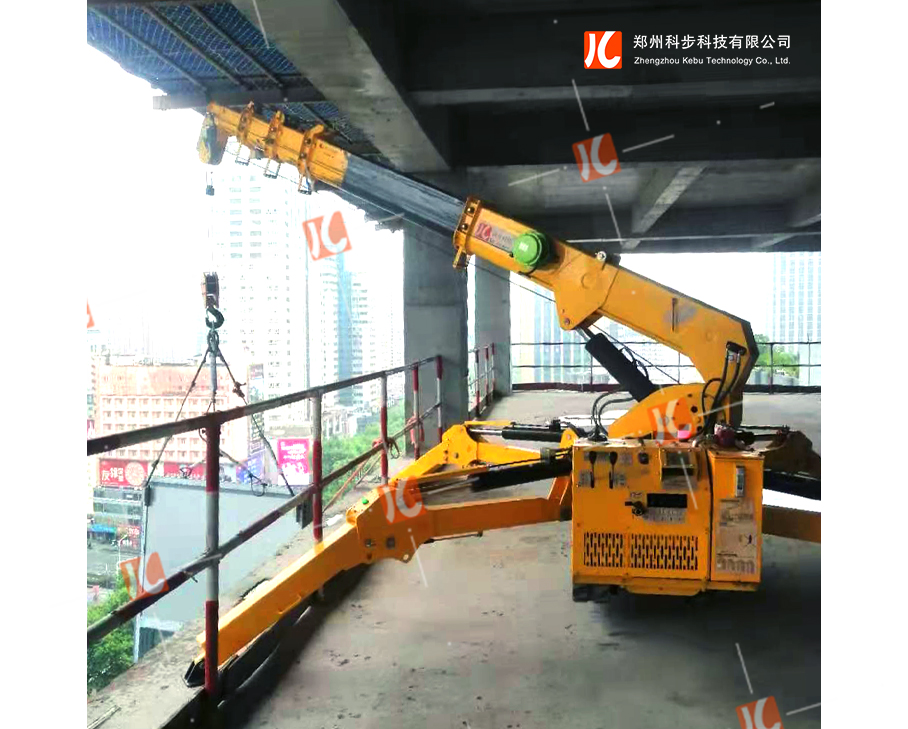

KB3.0 wheeled pure electric crane, widely used in substation electrical equipment maintenance and installation, mechanical chemical workshop equipment maintenance and installation, glass curtain wall and other small space occasions. At present, the products have been widely selected by state grid and China southern power grid, and have been used in Shanghai world expo, general motors, lanzhou petrochemical, tianxin petrochemical, wuhan tianling and Beijing netcom building construction projects, etc. The products have been exported to the United States, Australia, Canada

TECHNICAL PARAMETERS

Specification	Lifting capacity	2800kgs x 2m
Maximum Working Radius		8m
Maximum Ground Lifting Height		9.1m
Winch Device	Hook Speed	0>6.5m/min（ 4 times）
Winch Device	Diameter and length of wire rope	Φ7.7mm 45m
Telescopic System	Boom Type	Full automatic 5 section
Telescopic System	Boom Length	8.92 m
Up and Downs	Boom Angle	0° -60°
Slew System	Slew Angle	180° continuous/1.0 rpm
Outrigger	Outrigger Form	Frog-type outrigger(two outriggers)

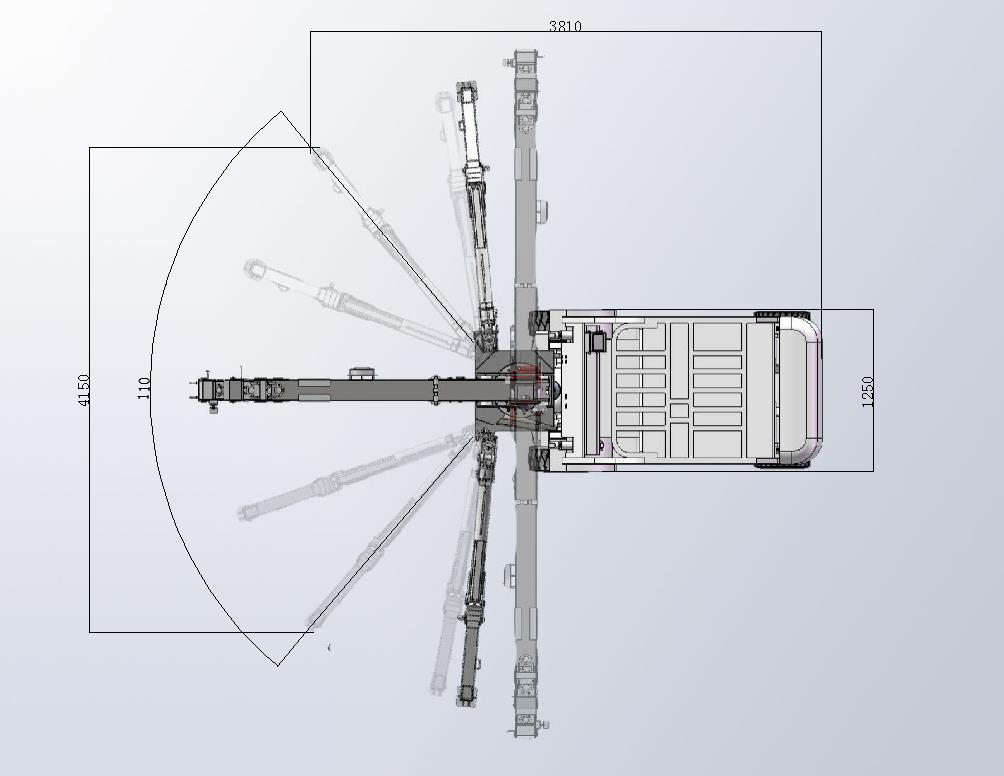

Outrigger	Maximum Extended Dimensions	4150mm
Traction system	Walking Way	Wheel type
	Walking Speed	0- 15km/ h
	Grade Ability	10°
Battery	Capacity	500Ah/5h
Battery	Voltage	80V

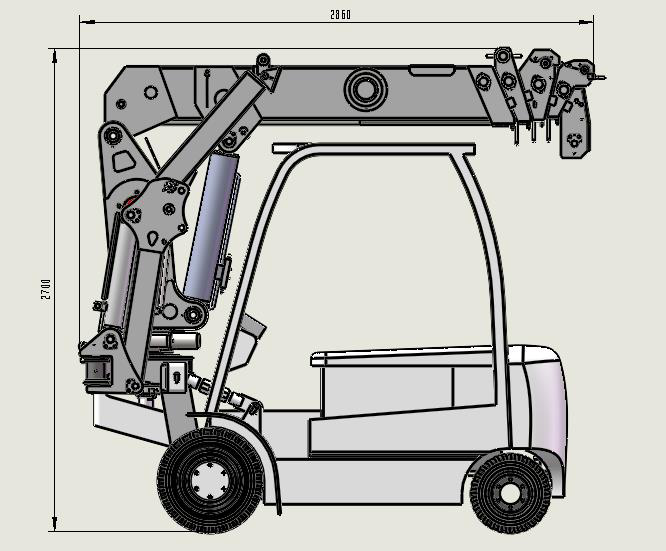

Length x Width x Height		2860mmx1250mmx2700mm
Weight		5400Kg
Safety Devices	Torque limiter, Alarm device, Emergency Stop Button, sensor of outrigger
Optional	Man basket

LIFTING TABLE

2.56/4.18m boom		5.8m boom		7.34m boom		8.92m boom
Working radius	Rated load（T）	Working radius	Rated load（T）	Working radius	Rated load（T）	Working radius	Rated load（T）
（m）	Rated load（T）	（m）	Rated load（T）	（m）	Rated load（T）	（m）	Rated load（T）
2	2.8	3	1.2	4	0.85	4.5	0.7
2.5	2.1	3.5	1.1	4.5	0.75	5	0.7
3	1.5	4	1	5	0.6	5.5	0.6
3.5	1.2	4.5	0.9	5.5	0.5	6	0.5
		5	0.75	6	0.42	6.5	0.45
		5.2	0.7	6.5	0.42	7	0.4
				6.75	0.33	7.5	0.3
						8	0.2
