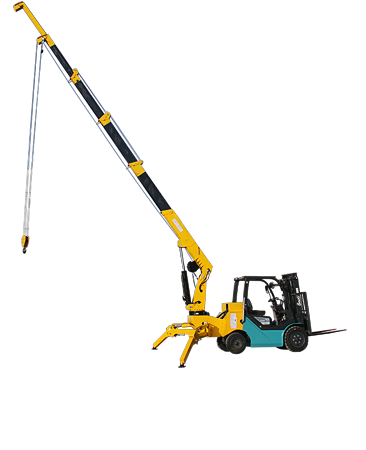

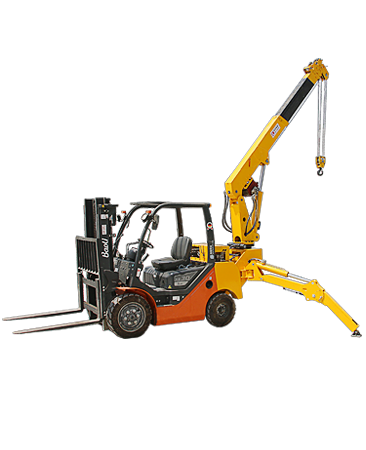

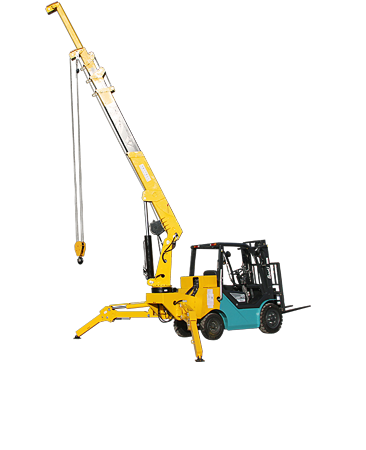

KBL3.0 wheeled crane

MODEL：KBL3.0

SIZE：2.950Tx1.3m

MAX WORKING RADIUS：8.3m

MAX OVERLAND LIFT：9.2m

WORKING ENVIRONMENT：Narrow space/interior

LEG FORM：automatic

DRIVING MODE：Forklift truck chassis

INTRODUCTION：

FEATURE：

The forklift chassis is combined with a small lifting arm to realize the functions of forklift and crane, the safety design can prevent wrong operation, adapt to rugged outdoor field, the structure is compact, and the overall width during walking is 1300m

Offer consulting

kebucrane@163.com

PRODUCT INTRODUCTION

KBL3.0 wheel crane is widely used in electrical equipment maintenance and installation of substation, mechanical and chemical workshop equipment maintenance and installation, glass curtain wall and other narrow space occasions.

At present, it has been widely selected by state grid and China southern power grid, and has been used in Shanghai world expo, general motors, lanzhou petrochemical, tianxin petrochemical, wuhan tianling and Beijing netcom building construction project, etc. The products have been exported to the United States, Australia, Canada, the United Kingdom, Brazil, Vietnam, uae and other countries.

TECHNICAL PARAMETERS

Product Parameters KBL3.0
型号Model		KBL3.0 wheeled crane
规格 Specification	叉车 Forklift	3000KG
规格 Specification	吊重 Weight Lifting	2800Kgx2m
最大作业半径 Maximum Working Radius		8.3M
最大地上扬程 Maximum Ground Lifting Height		9.2m
卷扬装置Winch Device	吊钩上升速度Hook Speed	0-6.5m/min (4 times)
卷扬装置Winch Device	钢丝绳Rope	Φ7.7mmx45m
伸缩装置 Telescopic System	吊臂形式Boom Type	Automatic 5 sections boom
伸缩装置 Telescopic System	吊臂长度Boom Length	8.92 m
起伏装置Up and Downs	吊臂角度Boom Angle	0° -65°
回旋装置Slew System	回转角度Slew Angle	180° 连续旋转 180° continuous/1 .rpm
支腿 Outrigger	支腿动作形式Outrigger Active Form	自动 Automatic

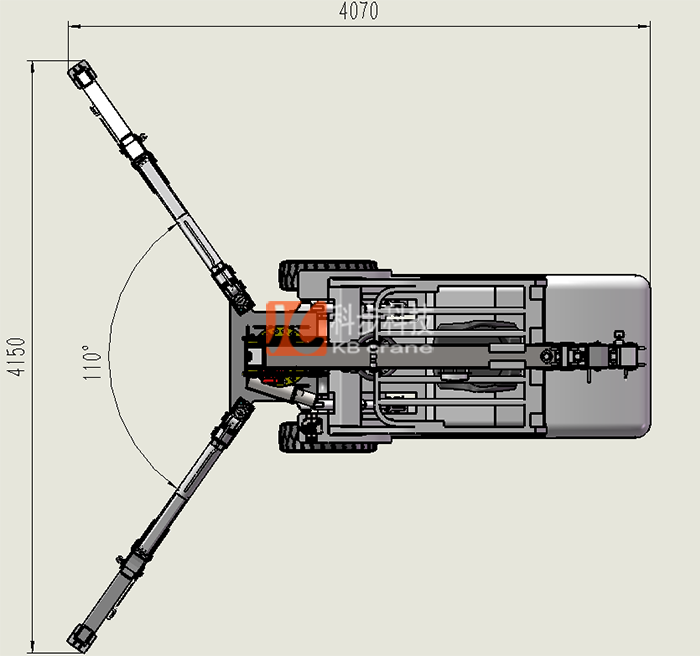

	最大伸岀幅度	4800mm
	Maximum Extended Dimensions	4800mm
行走装置	行走方式 Walking Way	叉车底盘(BAOLI KBD30)
Traction system	行走速度Walking Speed	0-18.5km/h
	爬坡能力Grade Ability	10°
发动机 Diesel Engine	型号Model	WEICHAI WP3.2G50E341
	排气量 Displacement	3200ml
	额定输出功率Maximum Output	36.8KW
	启动方式 Starting Method	电启动 Electric start
	控制方向 Control Direction	液力变矩器torque converter
安全装置 Safety Devices	重量限制器(高度限制器)、报警装置、急停按钮
安全装置 Safety Devices	Torque limiter (Height limiter) ,Alarm devices, Emergency button
选配装置 Matching Device	单人吊篮，单股吊钩/双股吊钩
选配装置 Matching Device	Man basket, Single-fall hook/2-fall hook

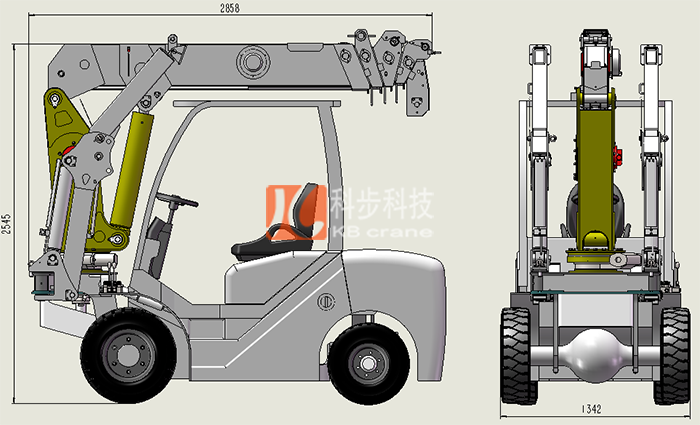

整车尺寸Dimension	长 x 宽 x 高 Length x Width x Height	4469mm1315mm2669mm
重量Weight	整车重量 Vehicle Weight	4300Kg

LIFTING TABLE

Total rated load outriggers at maximum positions
2.56m/4.18m boom		5.8 m boom		7.34 m boom		8.92 m boom
作业半径Working Radius (m)	额定总起重量 Rated Load (t)	作业半径 Working Radius (m)	额定总起重量 Rated Load (t)	作业半径 Working Radius (m)	额定总起重量 Rated Load	作业半径 Working Radius (m)	额定总起重量 Rated Load (t)
作业半径Working Radius (m)	额定总起重量 Rated Load (t)	作业半径 Working Radius (m)	额定总起重量 Rated Load (t)	作业半径 Working Radius (m)	额定总起重量 Rated Load	作业半径 Working Radius (m)	额定总起重量 Rated Load (t)
1.65	2.8	≤2.5	1.51	≤3.0	1.15	≤4.0	0.72
2	2.67	3	1.35	3.5	0.98	4.5	0.58
2.5	2.32	3.5	1.19	4	0.9	5	0.5
3	1.59	4	0.95	4.5	0.68	5.5	0.44
3.5	1.25	4.5	0.68	5	0.63	6	0.35
3.64	1.05	5	0.65	5.5	0.59	6.5	0.31
		5.2	0.58	6	0.44	7	0.28
				6.5	0.37	7.5	0.25
